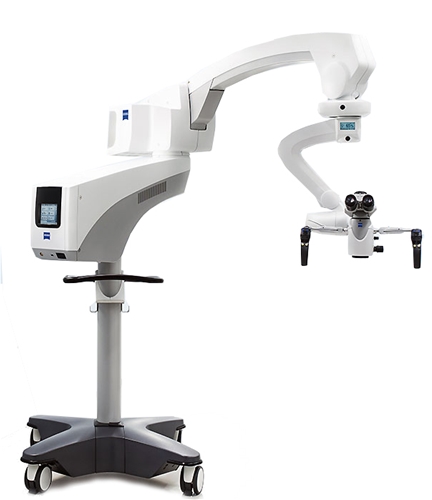

Zeiss OPMI Vario 700

Zeiss OPMI Vario 700 Features

Combining Carl Zeiss optics with a host of innovations, OPMI® VARIO 700 seamlessly integrates into the operating room environment. Physicians from multiple specialties provided valuable input in developing every aspect of its award-winning design. The result is a multidisciplinary surgical

  • Visual Clarity: State-of-the-art ZEISS optics and fully integrated HD video chain
  • Efficiency – AutoBalance and AutoDrape features that streamlines the pre-op setup
  • Versatility: A true multidisciplinary scope well-suited for many different procedures or surgical specialties- such as spine, ENT, plastic & reconstructive- without compromise
  • Beyond Visualization: Full integration capabilities with current and future Zeiss Surgical Workplace solutions


Zeiss OPMI Vario 700 Specifications


  • Total weight: approx. 275 kg
  • Maximum admissible load (accessories) on microscope head may not exceed 7 kg
  • Weight of transport container: approx. 220 kg

Electrical Data

  • Standard tabletop dimensions: 19.5”/22”/24” X 84” (49.5cm/55.8cm/60.96cm x 213.3 cm). #X100-2492

Apochromatic Optics

  • Motorized focus; working distance 200–500 mm
  • Motorized zoom; 1:6 zoom ratio
  • 10 x magnetic wide field eyepiece with integrated eyecups
  • 12.5 x magnetic wide field eyepiece with integrated eyecups
  • SpeedFokus for automatic focusing (only with integrated video camera)


  • Superlux® 180 W xenon light source
  • Automatic Iris Control for adjusting the illumination to the field of view
  • Focus Light Link: working distance controlled light intensity
  • Display of remaining lamp life time

System Setup

  • Manual balance with guidance via user interface
  • AutoBalance
  • AutoDrape – automatic air evacuation out of the drape

System Operation

  • Multifunctional programmable hand grips
  • Magnetic clutches for all system axes
  • Central user interface
  • Overhead display for showing important system parameters


  • Electrical power requirement: 115VAC < 10amps, 230V optional. (Must specify with order)
  • Full operation from internal battery – includes battery status indicator
  • 20’ (6 meter) power cord

General Video

  • Integrated 22” digital display
  • Video SpeedFokus – automated video focus
  • Adaptation of consumer (SLR) photo /video camera

Standard-Definition Video

  • Integrated 3-CCD SD video camera
  • Integrated image and video recording on USB-media or shared directory

High-Definition Video

  • Integrated 3-CCD HD video camera including HD DigiZoom
  • Integrated image and video recording on USB-media or shared directory
