Description

Description:

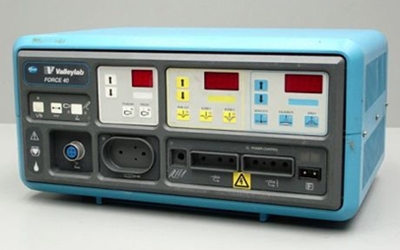

The Valleylab Force 40 is a digital electrosurgical unit that displays power and is very flexible in terms of cautery and procedure capabilities. The Force 40 ESU will perform standard functions including blend for both cut and bipolar modes.

SPECIFICATIONS

General Automatic activation impedance 40-100ohms
Automatic deactivation impedance: <20ohms, >2000ohms
Time delay range: .1 to 5.1 seconds
Activation tone: 45 to 65 dBA		 Alarm Tone: >65 dBA
Weight: 20 lbs (9.1 kg)
Dimensions: 7.8 (H) × 16.1 (W) × 11.9 (D) inches (199 × 409 × 303 mm)
Operates on 110/240V, 50/60Hz.
Output Waveform Cut: 500kHz sinusiod
Blend 1: 500kHz bursts of sinusiod @ 50% duty cycle, recurring @ 31.25 kHz
Blend 2: 500kHz bursts of sinusiod @ 37.5% duty cycle, recurring @ 31.25 kHz
Desiccate: 500kHzdamped sinusiodal burst with a repetition frequency of 250 kHz		 Fulgurate: 500kHz damped sinusiodal burst with a repetition frequency of 62.5 kHz
Spray: 500kHz damped sinusiodal burst with a repetition frequency of 31.25 kHz
Standard Bipolar: 500kHz sinusiod
Precise Bipolar: 500kHz sinusiod
Output Characteristics Cut: Max P-P 3300, Rate Load 300, Max Power 300, Crest Factor 2.1 @ 100W
Blend 1: Max P-P 3800, Rate Load 300, Max Power 250, Crest Factor 2.1 @ 100W
Blend 2: Max P-P 4000, Rate Load 300, Max Power 200, Crest Factor 2.1 @ 100W
Desiccate: Max P-P 3500, Rate Load 300, Max Power 200, Crest Factor 2.1 @ 100W		 Fulgurate: Max P-P 6500, Rate Load 300, Max Power 150, Crest Factor 2.1 @ 100W
Spray: Max P-P 9000, Rate Load 300, Max Power 150, Crest Factor 2.1 @ 100W
Standard Bipolar: Max P-P 550, Rate Load 100, Max Power 50, Crest Factor 2.1 @ 100W
Precise Bipolar: Max P-P 550, Rate Load 100, Max Power 50, Crest Factor 2.1 @ 100W
